Understanding Precision Medical Flowmeters
At Precision Medical, innovation and patient safety go hand in hand. For over 40 years, Precision Medical has been a leader in developing high-quality medical gas equipment that healthcare professionals rely on every day. The first ever product we released is still the most popular and trusted product from the catalog today: the flowmeter.
Whether you work in respiratory therapy, biomedical engineering, or hospital supply management, understanding the design, functionality, and safety differences among various flowmeter types is crucial. In this article, we will go over the different flowmeters Precision Medical carries and their key benefits.
What Is a Medical Flowmeter?
A flowmeter regulates and measures the flow of medical gases, most commonly oxygen or air, to a patient. These devices are critical in ensuring the correct gas flow reaches the patient safely and consistently.
Precision Medical offers a comprehensive range of flowmeters, including:
- Chrome Flowmeters
- Compact Flowmeters
- Dial Flowmeters
- Select Flowmeters
- Flowmeter Accessories such as Y-blocks, T-bars, and power takeoffs (PTOs)
Each design has its own clinical application, advantages, and performance characteristics.

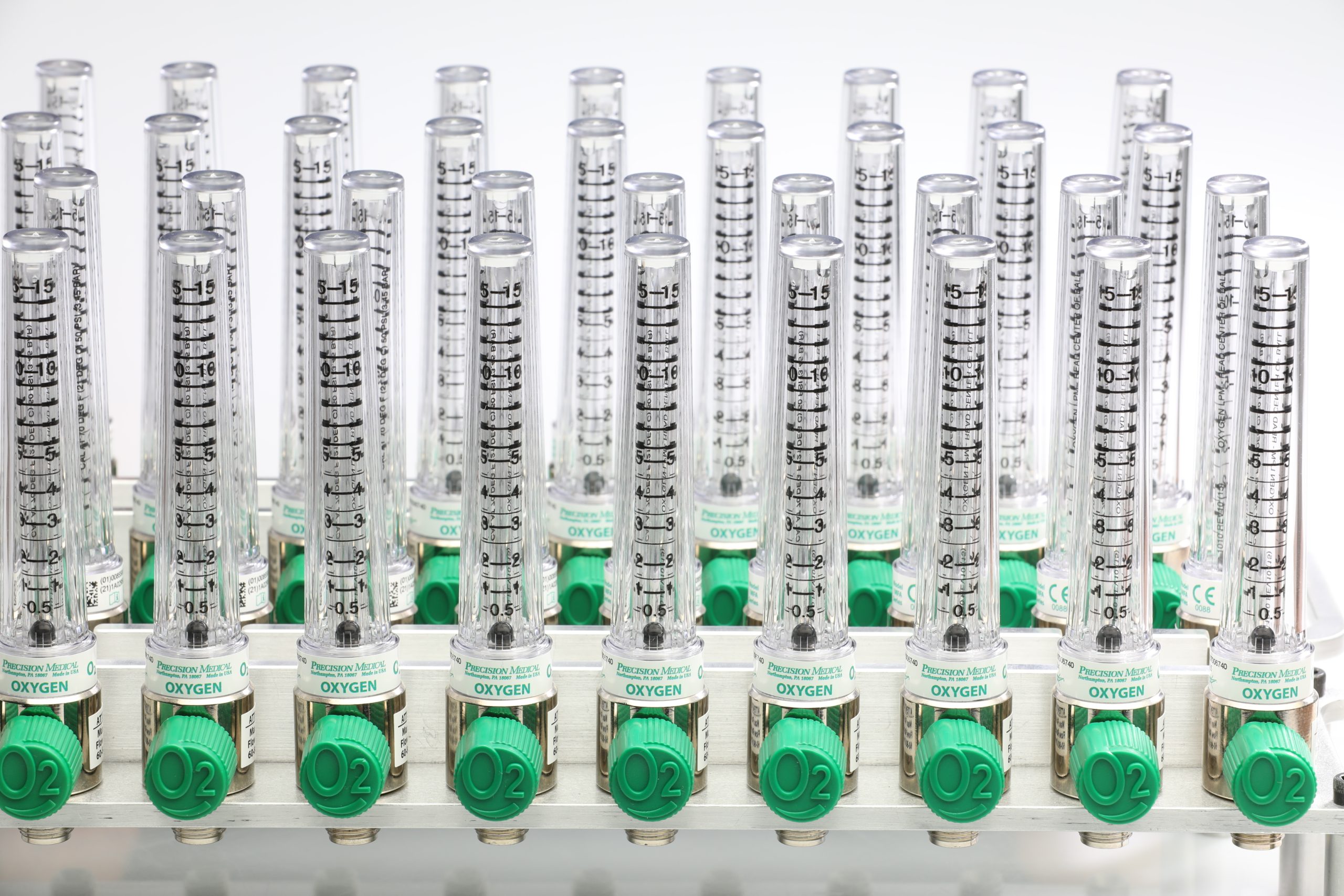

Chrome Flowmeters: The Precision Medical Standard
Our chrome flowmeters are considered the “Cadillac” of the industry. These models feature a brass body and needle valve plated with chrome for durability and precision. The brass needle valve controls the orifice size, determining gas flow with exceptional accuracy.
Key Benefits:
- Back Pressure Compensated: Ensures accurate readings even if there’s downstream resistance (such as kinked tubing).
- Safety Verification: The float ball provides visual feedback, if resistance occurs, the ball indicates incorrect flow.
- Durability and Quality: Brass construction ensures long-term reliability in clinical settings.
Precision Medical calibrates each flow meter based on inlet pressure, barometric pressure, and temperature, ensuring global accuracy across 50 PSI (U.S.), 4 bar, and 5 bar systems (common in Europe and other countrie).
Pediatric Flowmeters: Safety First
Precision Medical does not manufacture dial-style flowmeters for pediatric or neonatal use, and there’s a very good reason why.
Pediatric patients, especially premature infants, require extremely low and precise oxygen flows. Because dial flowmeters lack visible flow feedback, clinicians could miss occlusions or resistance that reduce gas delivery. Our Thorpe tube, back pressure compensated flowmeters provide immediate visual confirmation of flow accuracy, ensuring the safest possible care for the smallest patients.
Each pediatric model features:
- Glass flow tubes (for precision and visibility)
- Distinctive stork labeling
- Clear safety warnings for careful handling
Safety and accuracy are never compromised for cost or convenience.
Compact and Dial Flowmeters: Designed for Portability and Durability
Compact Flowmeters
Built with a lightweight aluminum body, these flowmeters are ideal for situations where weight and space matter, such as on wall outlets or portable setups.
They offer:
- The same calibration accuracy as chrome models
- Lighter weight and lower wall strain
- Cost-effectiveness without sacrificing performance
Dial Flowmeters
Perfect for EMS, transport, and mobile care, Precision Medical’s dial flowmeters provide rugged performance in demanding environments. However, because they operate in set increments (no partial flows between settings), they are best suited for adult or general use, not for pediatric care.
Expanding Capability with Flowmeter Accessories
To support flexible clinical configurations, Precision Medical manufactures Y-blocks, T-bars, and power takeoffs (PTOs) that expand a single wall outlet safely and efficiently.
- Y-Blocks: Split one outlet into two for dual oxygen applications (e.g., a trach collar and resuscitation bag).
- T-Bars: Offset connections to reduce interference between adjacent wall units.
- Power Takeoffs (PTOs): Deliver 50 PSI power for devices like ventilators and BiPAP machines, with built-in demand check valves.
These accessories allow hospitals to adapt to complex patient needs while maintaining safety and system integrity.
Final Thoughts
Whether it’s a neonatal intensive care unit, emergency transport, or standard patient care floor, Precision Medical flowmeters continue to set the standard for performance, safety, and dependability. “We don’t make design decisions to be different, we make them to be safer.”- Andy Brown, RRT-NPS, VP of Sales at Precision Medical.
